Tips and Tricks for Typst Formatting

Shift images that are wrapped around

The wrap-it package on typst¹ allows one to wrap text around images. The syntax is usually something like

¹ to embed typst output in quarto documents, use the typr package.

#let fig = figure(...)
#let body = lorem(30)
#wrap-content(fig, body)

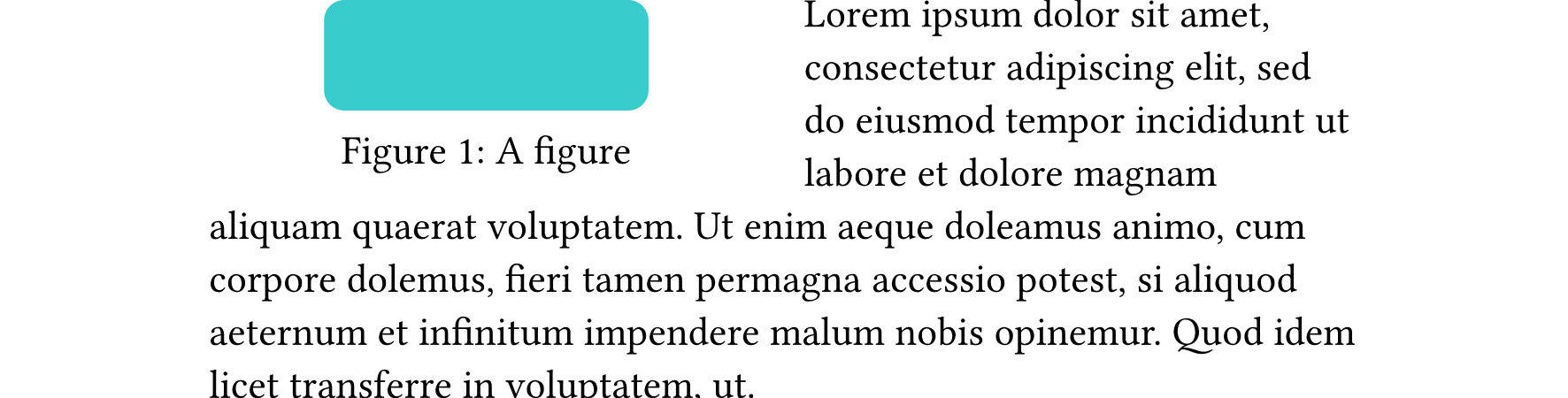

… which would render something like the following:

# 1. define typst source code
typst_source <- c(
  '#import "@preview/wrap-it:0.1.1": *',
  '#set page(width: 10cm, height: auto, margin: (left: 2cm, top: 0cm, bottom: 0cm, right: 2cm))',
  '#let fig = figure(rect(fill: teal, radius: 0.5em, width: em), caption: [A figure])',
'#let body = lorem(50)',
'#wrap-content(fig, body, columns: (1fr, 1fr))'
)

# get source directory and construct local output path
source_dir <- knitr::current_input(dir = TRUE)
# print(source_dir)
png_filename <- "typst-output-graphic.png"
png_output_file <- fs::path(source_dir, png_filename)

# typr::typr_compile(input = typst_source,
#                    output_format = "png",
#                    output_file = png_filename,
#                    typst_args = c("--ppi", "300"))

knitr::include_graphics(png_filename)

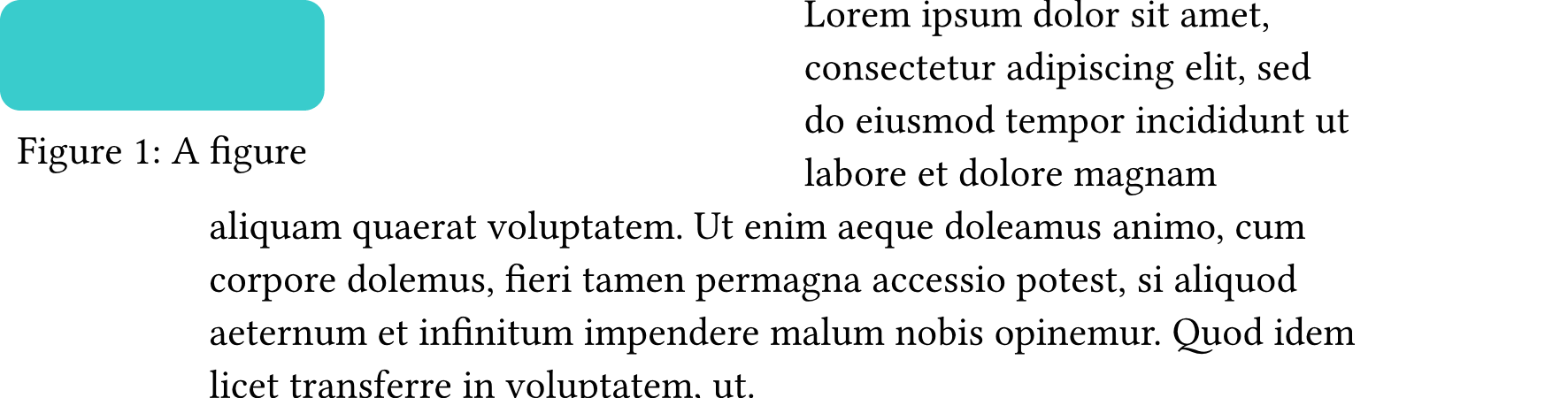

But let’s say you want to “shift” this image to the left side into the margin, but want the text to still follow the margin. How does one do that? The answer: use box to wrap the image and manipulate the inset and move. The new function would look like something like this:

#let fig = figure(...)
#let body = lorem(30)
#wrap-content(move(dx: -0.75in, box(fig, inset: (right: -0.75in))), body)

typst_source <- c(
  '#import "@preview/wrap-it:0.1.1": *',
  '#set page(width: 15cm, height: auto, margin: (left: 2cm, top: 0cm, bottom: 0cm, right: 2cm))',
  '#let fig = figure(rect(fill: teal, radius: 0.5em, width: 8em), caption: [A figure])',
'#let body = lorem(50)',
'#wrap-content(move(dx: -1cm, box(fig, inset:(left: -1cm))), body, columns: (1fr, 1fr))'
)

source_dir <- knitr::current_input(dir = TRUE)
# print(source_dir)
png_filename <- "typst-output-graphic-2.png"
png_output_file <- fs::path(source_dir, png_filename)

# typr::typr_compile(input = typst_source,
#                    output_format = "png",
#                    output_file = png_filename,
#                    typst_args = c("--ppi", "300"))

knitr::include_graphics(png_filename)

To be honest the typr package is giving me some interesting bugs and definitely not shifting text in the way I expected it to …
